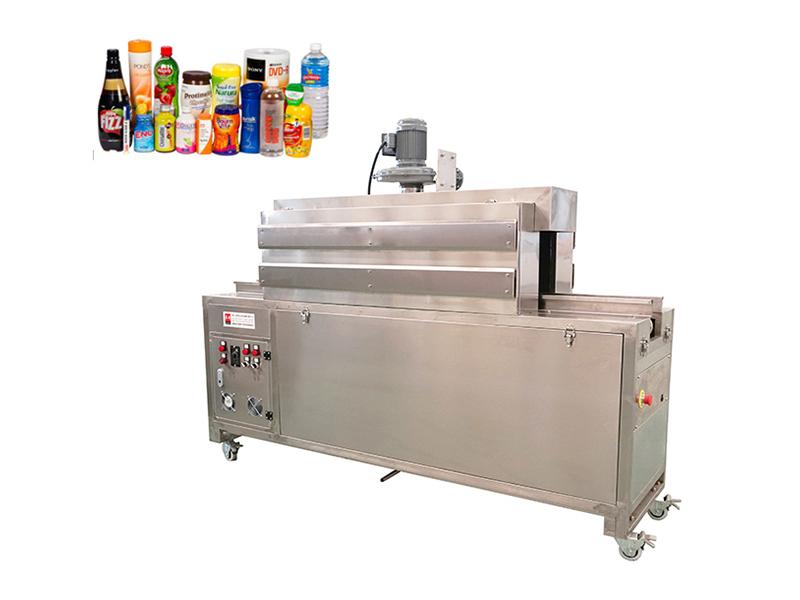

Steam shrink labeling tunnel with steam generator

The Steam Shrink Tunnel is the bestseller of E-pack branded Steam Shrink Tunnel series, which is widely used for any shape of containers to heat, shrink and conform sleeve labels without creating bubble marks, wrinkles, color bleeding, sleeve shifting or scaring package.
  • Item NO.:

    EPS-1B
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen


E-Pack specialized in different kinds of shrink tunnels,steam shrink tunnel and electrical shrink tunnel,we offer customized model in accordance with users’ specific demand. OEM and ODM orders are acceptable.

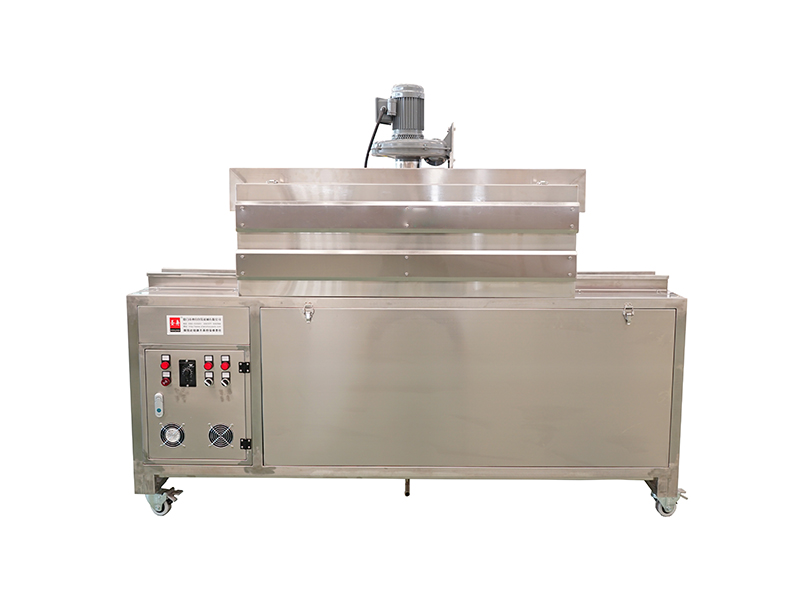

Steam Shrink Tunnel

Steam shrink tunnel machine is made of 304 stainless steel, it not only saves energy, but also matches with the international safety standard.

Our equipment is designed and configured specifically for customer factory, product, and production requirements to maximize efficiency and ensure suitability for label application.

bottle shrink tunnel machine

Features and Benefits

1. Best choice for half or full container shrink-wrap application at low to high speed;

2. Ideal for applications that demand precise sleeve location;

3. Perfect label registration and container shape conformance;

4. Perfect shrinkage without creating bubble marks, wrinkles, color bleeding or sleeve shifting;

5. Excellent option for flammable or under pressure product, e.g. aerosol can;

6. Eliminate the risk of plastic container distortion;

7. Easily integrate into existing production line or install stand alone.


What's the special of our steam heat shrink tunnel

sleeve shrink tunnel

  1. Tool-free adjustment;
  2. All Steam Pipes open/close respectively depend on needs;
  3. Easy Steam Pipe format reset for quick bottle changeover;
  4. Allow precise application of steam to specific points on container;
  5. Each Steam Pipe individually adjustable for steam volume, flow and rotary nozzle position.


Specification

Model

EPS-1B

Accept Bottle, Diameter

Up to 120 mm

Accept Bottle, Height

Up to 250 mm

Shrinkage Capability

40 to 120 BPM

Steam Generator

Built-in, 24 kw

Electrical

380 v, 50 hz, 3 ph

Power Consumption

26 kw

Water Consumption

10 liters per hour

Machine Dimension, L*W*H

2,000 * 580 * 1,600, mm


Applications

steam shrink sleeve tunnels are designed and manufactured to handle even the most complicated shrink labeling operations while keeping energy and maintenance costs low. which is widely used in the beverage industry.

shrink tunnel for bottles






Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
