Power roller flexible conveyor is ideally suited for truck loading and unloading, distribution centers, packaging, portable assembly lines, shipping and receiving operations.
Item NO.:
EPC-03Order(MOQ):
1Product Origin:
ChinaShipping Port:
Xiamen
E-Pack is specialized in different kinds of packaging machines and conveyor systems,we offer customized model in accordance with users’ specific demand. OEM and ODM orders are acceptable.
Powered Roller Conveyor
Power roller flexible conveyor is ideally suited for truck loading and unloading, distribution centers, packaging, portable assembly lines, shipping and receiving operations.
Features
1.Continuous Duty Multiple Drive Motors;
2.Line speed is adjustable from 0 to 30 meters per minute. Start/stop controls at both ends;
3.Self Tracking;
4.Cartons follow the twists and turns of the conveyor path without using engineered curves;
5.Adjustable Height;
6.Heavy-duty square tubing legs offer longer service life and stability;
7.Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and locking nuts;
8.Castors with Brakes;
9.Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.

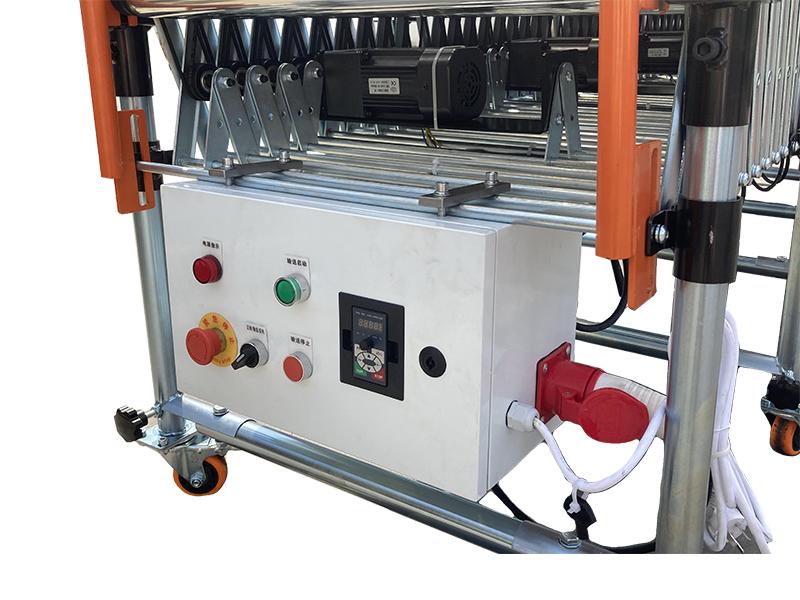

Detailed Photos
Specification
|
Style |
RETRACTABLE ROLLER CONVEYOR WITH POWER |
|
Model |
EPC-03 |
|
Product size |
standard width: 600mm/800mm |
|
Support |
wall thickness of the steel frame: 1.5~3.0mm |
|
Roller Material |
50 diameter, 201 stainless steel, 9pcs/m |
|
Retractable Slice |
bending structure, steel plate stamped part, large loading capacity, bolted connection |
|
Caster |
universal caster with brake, stable conveying |
|
Driving Belt |
standard brand: GATES V-ribbed belt |
|
Motor |
standard brand: MAILI 120W, 220V, customizable |
|
Line Speed |
0~30m/min, one motor every 1.2m, all synchronized |
|
Working Length |
unlimited |
|
Working Width |
standard width: 600mm/800mm, customizable |
|
Working Height |
(1) 57~86cm; (2) 75~115cm; (3) 95~160cm |
