Industrial Bottle Shrink film Sleeve Steam Shrinking Tunnel Machine

E-Pack specialized in different kinds of shrink tunnels, steam shrink sleeve tunnels are designed and manufactured to handle even the most complicated shrink labeling operations while keeping energy and maintenance costs low. We offer customized model in accordance with users’ specific demand. OEM and ODM orders are acceptable.

CHARACTERISTICS

Steam shrink tunnel machine is fabricated of heavy gauge 304 stainless steel, it not only saves energy, but also matches with the international safety standard.

1. All-in-one compact solution

Most of the steam tunnels in the market need to apply a steam generator to use, we have a BUILT-IN 24 kw steam generator, there is no need for users to purchase a stand-alone Steam Generator. In addition to reducing purchase cost, there are extra benefits from the built-in Steam Generator

1）There are 10 pipes, 700 spay nozzles in the tunnel.

2）All Steam Pipes open/close respectively depend on needs, it does not waste steam like the “open flow” tunnels.

3）Each Pipe is fully adjustable in horizontal and in vertical to fit the container's size and shape. This allows precise application of steam to specific points on the container, for the best-possible shrink-wrap effect and minimize the risk of bottle distortion.

4）Patented tool-free adjustment system, which can offer tool-less container changeovers and the changeover process is simple, intuitive, and repeatable.

3. After-sale service

• One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

• After the warranty period, we continue to provide lifetime maintenance services.

TECHNICAL SPECIFICATIONS

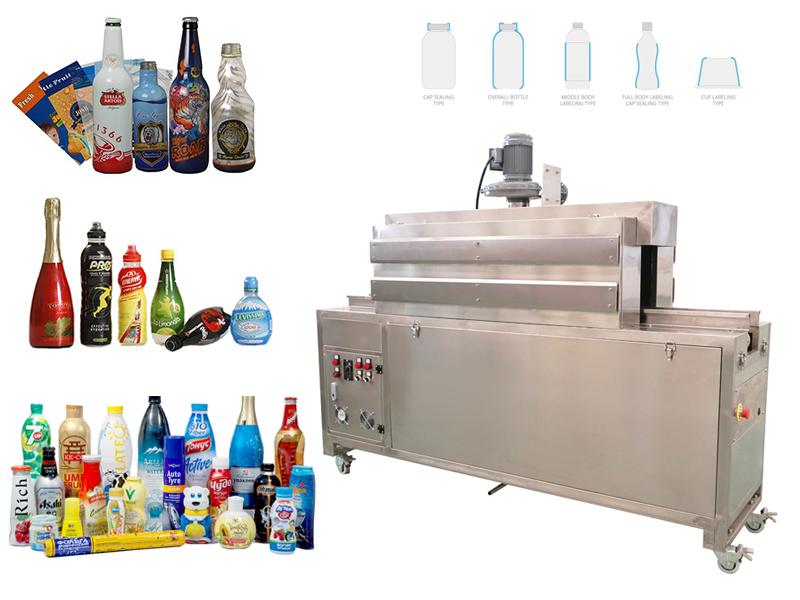

APPLICATIONS

When it comes to the option of applying sleeves or film on a container without wrinkles or imperfections, steam tunnels provide the right answer. Compared to other shrink tunnels such as infrared tunnels, steam tunnels provide the most uniform heat distribution due to the 360° application of heat around the container at low temperature – steam is also the least aggressive heat compared to the other heat sources. Steam tunnels can handle many products of various shapes and sizes in a short time, thus resulting in cost and time effectiveness.
