Tamper Evident Neckbands Heat Shrink Tunnel Wrapping Machine

EP-BS02 Neckbands Shrinking Tunnel Machine

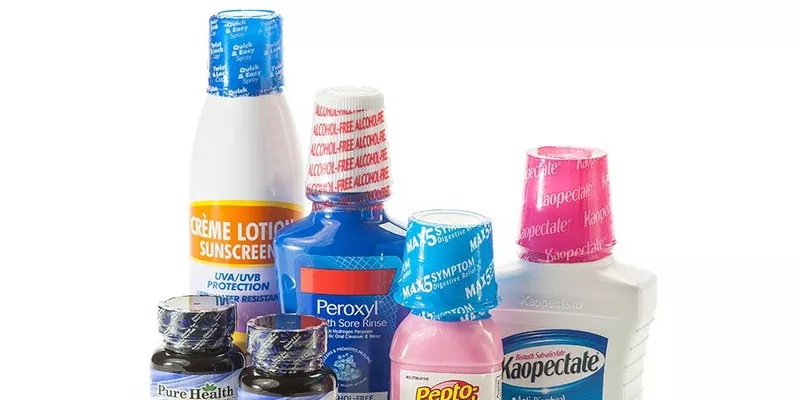

■ This Semi-automatic machine is for tamper evident neckbands;

■ Customized with your packing requirements.

  • Item NO.:

    EP-BS02
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    220V/50Hz/1ph
  • Available Size:

    Width≤80mm

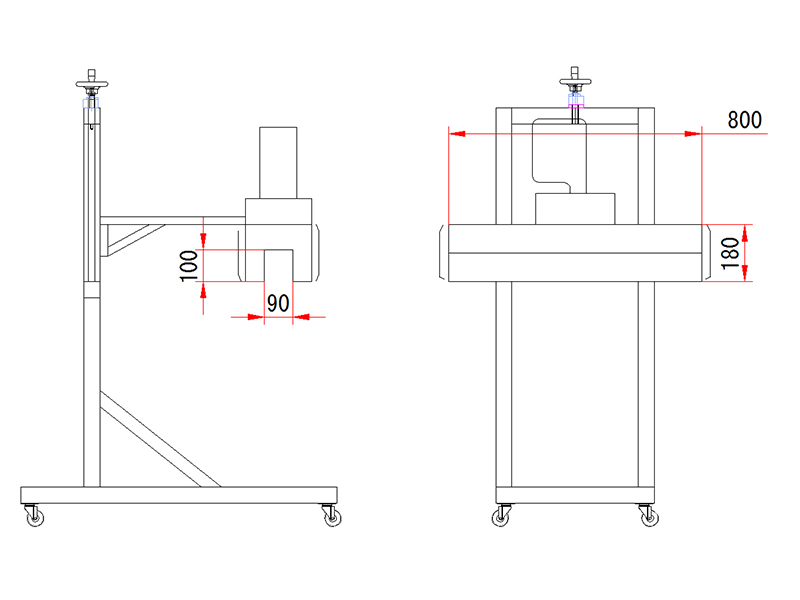

  • Dimensions:

    800*900*1,300mm
  • Weight:

    About 80kg
Tamper Evident Neckbands Shrinking Tunnel Machine

It has high performance for sealing the bottle tight with plastic shrink sleeves on the bottle neck.The sleeve has to mounted on the bottle neck manually or by another facility before sealing.The Sleeve Covered neck of the bottle when passed through the tunnel, the right amount of heat applied on the sleeve wraps the neck of the bottle firmly.

Positioning Round Bottle Labeling Machine

CHARACTERISTICS

1.Features

  • This machine uses LEISTER heat gun,it has the stable operation;
  • Full Face Stainless Steel hosts, the whole machine is waterproof rust;
  • Height adjustments to suit height variant bottles;
  • Easy to change mandrels to suit different bottles;
  • This semi automatic Glass Bottle Cap Seal Shrink Wrapping Machine could do perfect shrink and wrap for various kinds of pvc/ pof film;
  • Here we also can supply customized heating tunnel size.
2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested
  • After the warranty period, we continue to provide lifetime maintenance services.

TECHNICAL SPECIFICATIONS

Model

EPBS-02

Belt speed shaft

5-30m/min

Maximum bottle diameter

80mm

Bottle height

50-400mm adjustable

Power supply

220v,50Hz,1ph

Dimension

L800*W900*H1300mm


Applications

Semi-Automatic Bottle Neck Label Shrink Tunnel Machine is widely used in the packaging of some industries, such as the bottle factory, beverage factory,pharmaceutical industry, the food industry, the cosmetic industry, etc.
