Full Automatic Shrink Wrapping L bar Sealing Cutting Machine

EP-FQL450 Automatic Sealing and Cutting Machine
■ Thisautomatic machine is a fully automatic L type sealing and cutting knife packaging machine;

■ Customized with your packing requirements.

  • Item NO.:

    EP-FQL450
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    220V/50Hz/1ph
  • Available Size:

    Length≤500mm;Width<400mm;Height:10-60 mm

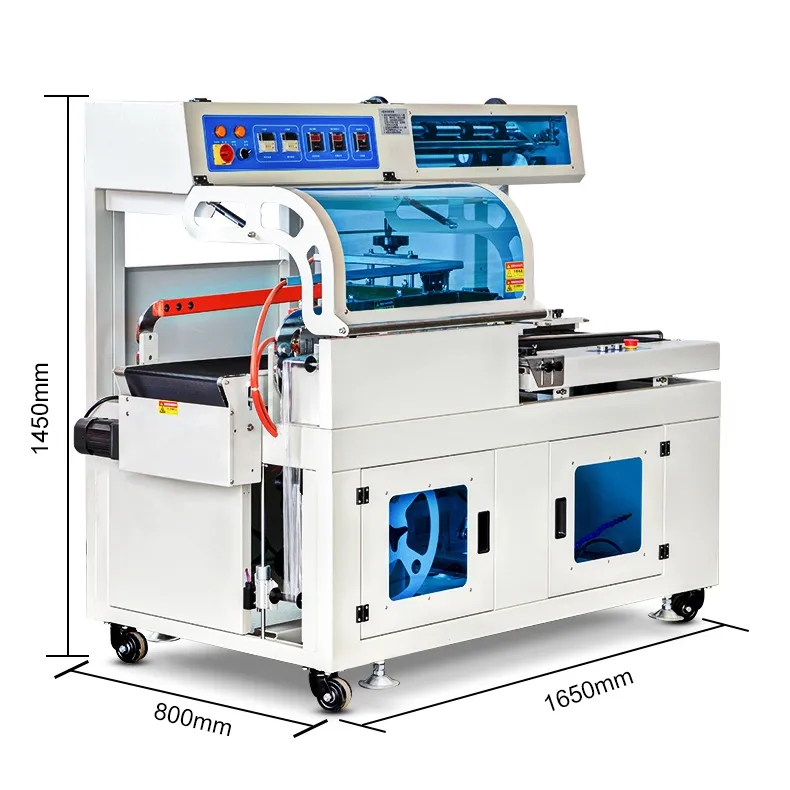

  • Dimensions:

    1650x800x1450mm
  • Weight:

    About 300kg
L Bar Film Cutting Sealing Machine For POF/PE

EP-FQL450 series sealing machine is a fully automatic operation of the L type seal Cutting machine, widely used in mass production packaging line efficiency High,automatic film feeding device and manual adjustment of the guiding film system and hand Dynamic adjustment of the feeding conveyor platform, suitable for different sizes of products.

Positioning Round Bottle Labeling Machine

CHARACTERISTICS

1.Features

  • 1. The use of the United States and the United States DuPont coated with anti - adhesive high temperature aluminum alloy knife,Sealing will not crack, no coking, no smoke zero pollution.
  • 2.Automatic feeding length, also via a combination of electric eye and self timer.Dynamic regulation. Equipped with an induction motor, automatic coiling scrap.
  • 3.Equipped with imported detection photoelectric, horizontal.vertical detection of each group, easy to Switch to select, for thin and small packages, can be easily completed sealing bag Loading operation.
  • 4. Temperature controller with digital temperature controller.built-in PID function, sealing knife temperature Extremely sensitive and accurate, can be arbitrarily set. The seal itself is automatic Protection function, effectively prevent the false cut packaging.
  • 5. When the packing size change, the adjustment is very simple, do not change the mold With the bag.
  • 6. The machine is equipped with the sealing part of the protective cover, and with automatic Alarm function, greatly improve the safety of the operator.
  • 7. The whole set of machines and production lines to achieve the unmanned operation of the connection.Scope of application:Applicable to software, food, cosmetics, printing pharmaceutical and floor, ceramic Large volume shrink packaging for porcelain, beverage, metal and other industries.
2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested
  • After the warranty period, we continue to provide lifetime maintenance services.

TECHNICAL SPECIFICATIONS

Working Speed

15~30 pcs per minute

Accept Package, length

500mm

Accept Package, width

400mm

Accept Package, height

10 - 160 mm

Electrical

220 v, 50~60hz

Power Consumption

1.35kw

Air Consumption

0.6 mpa

Overall Size

1650x800x1450mm

Net Weight

300 kgs

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.

PRODUCT DETAILS




Applications

Automatic PE/POF Film Cutting and Sealing Machine is widely used in the packaging of some industries, such as the bottle factory, beverage factory,pharmaceutical industry, the food industry, the cosmetic industry, etc.
