Heat Shrink Wrap Tunnel with L Bar Cutting Sealing Machine


L bar sealer and shrink tunnel
L bar sealer and shrink tunnel L bar sealer and shrink tunnel

Heat Shrink Wrap Tunnel with L Bar Cutting Sealing Machine

EPL-FQL450+EPL-4020 Shrink Tunnel With Sealing Cutting Machine
■ This fully-automatic visual machine is the L-shaped sealing and cutting shrink wrap machine;

■ Customized with your packing requirements.

  • Item NO.:

    EPL-FQL450+EPL-4020

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Power:

    220V/50HZ

  • Certification:

    CE

  • Dimensions:

    1450*1650*800mm+1600*560*660

  • Weight:

    About 380kg
Inquiry now
Heat Shrink Wrap Tunnel with L Bar Cutting Sealing Machine

This machine is widely used in the packaging of some industries, such as the electronics industry, the pharmaceutical industry, the food industry, the cosmetic industry, etc.

Positioning Round Bottle Labeling Machine

CHARACTERISTICS

1.Features

  • Multiple systems to ensure precise operation;
  • Advanced cutter seals firmly;
  • Automatic feeding automatic adjustment;
  • Plexiglass protective cover improve safety;
  • Imported detection photo electric.
2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

  • After the warranty period, we continue to provide lifetime maintenance services.

Product Details

sealing cutting machine

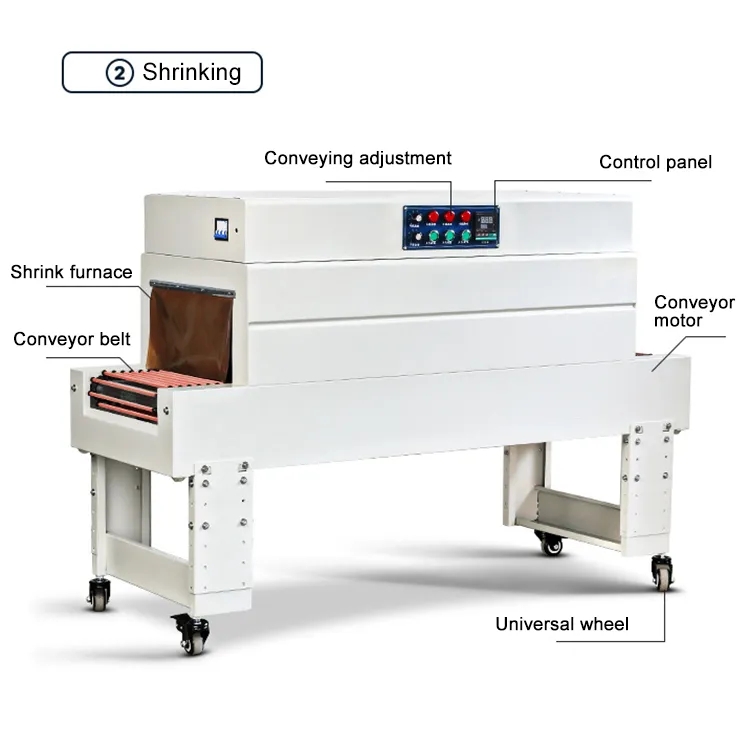

Shrink wrap tunnel

TECHNICAL SPECIFICATIONS

Film Cutting Machine

SZ-FQL450

Shrinking Machine

SZ-4020C

Power Voltage

220V/50-60HZ

Power Voltage

380v 50-60HZ/220V 50/60HZ

Gas source

5-7kg/cm³

Power

9 KW

Power

1.6KW

Heat shrink Box

1200*400*200cm(L*W*H）

Packing Speed

20-40bags/min

Produce Size（W*H）

200x100mm

L+H（H＜150）

＜500mm

Conveyor Speed

0-15m/min

W+H（H＜150）

＜400MM

Conveyor material

roller chain

Max Height

＜150mm

Roller Chain

Mesh Belt/ Teflon Roller /Chain

External Dimensions

1650x800x1450mm

Machine Size(L*W*H）

1600x560x660mm

Weight of Machine

350kg

Weight of Machine

80kg

Applicable Film

POF/PE

Applicable Film

POF.PVC.PP

Wooden Case Package

2100*1050*1570mm

Wooden Case Package

1650x610x720mm

Applications

Automatic Sealing Cutting Machine With Shrink Tunnel Machine suitable for heat shrink packaging of glass bottles, cartons, electronic appliances,cosmetics, books, records, hardware tools,daily necessities, pharmaceuticals,fruits, etc.
