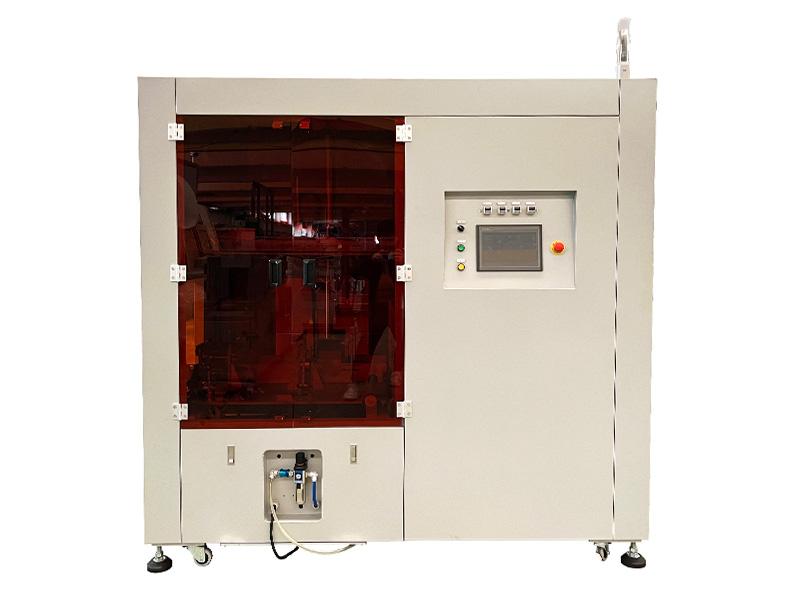

Automatic Paper Carton Box Cardboard Folding Forming Machine

EPC-ZHJ-300 Box Folding Machine

The machine have reasonable design,it can take box,stamping box,folding bos shell in the same time.

■ We also could be designed if you need to change box size or need the manual operation system.

  • Item NO.:

    EPC-ZHJ-300
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    220V/50HZ
  • Certification:

    CE
  • Available Size:

    L:150-250 * W:280-380 * H:60-130 mm
  • Dimensions:

    L1700×W1300×H1800mm
  • Weight:

    About 780kg

Carton Folding Machine
Box folding machine is a special machine for the formation of aircraft box, can be the box board

Press forming, bottom locking or using viscose form; To free up the problems of folding boxes by hand, for example: slow speed, high cost.

Real time printing and labeling machine

CHARACTERISTICS

1.Features

  • The box folding machine is mainly composed of case, bin, carton manipulator, carton forming station, automatic locking bottom parts.
  • It is suitable for a variety of sizes and specifications of the carton, to achieve quick and simple switching. Adjusting station adopts handwheel screw adjustment, Count with a scale.
  • Stable and fast operation, in the production process, will not cause product damage due to the equipment itself.
  • Count (power off memory) and display function.
  • Safe and effective protection, machine moving parts with safety shield. The parts in contact with the product have no weld,throw Photosynpassivation. Motor overload or excessive consumption of rated load must stop and alarm.
  • The equipment conforms to the national quality standards, environmental standards, electrical safety standards and other relevant standards. All solenoid valves and controls Dc 24 volt power supply is adopted for signal feedback. All 24 volt power supply and direct current used by PLC controller .The source uses a special high-power switching regulated power supply for power supply.
2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested
  • After the warranty period, we continue to provide lifetime maintenance services.

Product Details

TECHNICAL SPECIFICATIONS

Model

EPC-ZHJ-300

Folding speed

600-720 Pcs/H

Carton sizemm

L150-250 * W280-380 * H60-130 mm

Power supply

220V50Hz1.5Kw

Air pressure

600NL/min0.5-0.7Mpa

Machine dimension

L1700×W1300×H1800mm

Machine weight

780kg

Applications

Box Forming Machine has the wide use for example in the electronics,toy,cosmetic packaging and so on.
